Guardrails greenery filters — pass 2 (green-voted height floor) and final val gate

2026-09-07 · AI3D-387 · branch t3code/fc369e5b · commits 1bba057 (greenery floor), 0f95767 (detector-hag re-sweep), ef7ace7 (pass-1 returns filter) · pass-1 report: ai3d-387-returns-pass1-20260907 · handoff: handoff-guardrails-returns-vs-greenery-20260907-0922

KEEP both filters, default stays OFF. Recommended production config: --set returns_filter_enabled=true --set greenery_floor_enabled=true. Pass 2 adds a green-voted height floor for w_beam mask rows near the ground. On val segment 085 vs GT-66 (both filters on): P 0.7334→0.7937, R roughly flat (0.6824→0.6818), F1 0.7070→0.7335. The final gate on the never-tuned val split (003, 022, 023, 087, 093, 094) passed vision judge 12/12, with caveats: treat 0.15 m as a ceiling on the floor, 022's overgrown median hedge is only partially helped, and image checks can't rule out sub-pixel bottom-flange loss.

1. What changed (pass 2)

Second default-OFF knob family:

Knob	Value
`greenery_floor_enabled`	false (default)
`greenery_floor_hag_m`	0.15
`greenery_floor_green_vote`	true
`greenery_floor_exg_min`	0.06
`greenery_floor_green_rate_tau`	0.30
`greenery_floor_radius_m`	0.5
`greenery_floor_min_neighbors`	5
`greenery_floor_instance_types`	`["w_beam"]`

Rule: drop a w_beam row when height-above-ground < 0.15 m AND the share of mask neighbours (0.5 m ball in x, y, hag) with excess-green index exg = (2G−R−B)/(R+G+B) > 0.06 exceeds 0.30. RGB read once per record; both filters share one KD-tree; sequential stats ("greenery_floor" block after "returns_filter" in run_summary.json).

No-op guarantees: knob off → byte-identical; RGB absent with green vote on → zero drops plus a warning; a per-segment warning fires when the floor sits at or below the mask replay's own height floor (0.20 m on the non-component path, 0.10 m with component masks).

Code renamed: returns_filter.py → mask_filters.py, ReturnsRows → MaskRowAttributes.

Adversarial review Opus + Codex: 10 findings, all fixed (default exg 0.03→0.06, lazy tree on no-op paths, chunk/decimation alignment test, in-place exg reduction 32→14 B/pt peak, boundary-strictness tests). 473 unit tests pass.

2. Why exg 0.06 and not the sweep's 0.03

dev/analysis/returns_085/resweep_detector_hag.md: the detector's own ground model is the 8th percentile of all points per 0.75 m cell, so where no ground return exists (under the beam, grass banks) it sits above the true surface; mask-row hag is biased low (median −0.010 m, RMSE 0.049 m; w_beam p1 −0.14 m). The DEM-tuned rule (hag<0.15 & green(exg>0.03)>0.30) costs 2,479 GT-66 rows on detector hag instead of 360; tightening the vote to exg>0.06 costs 447 (P 0.782, F1 0.702 on the A1B0 mask). An ungated 0.15 m floor costs 3,744 — the colour vote is load-bearing.

Rule	Dropped	GT-66 lost	GT-74	GT-71	P	F1
returns only	8,740	365	2,281	180	0.7394	0.6845
+ floor 0.15, exg>0.03 vote	52,335	2,479	17,006	25,199	0.7911	0.7052
+ floor 0.15, exg>0.06 vote (shipped)	42,734	447	15,239	19,684	0.7817	0.7020
+ floor 0.15 ungated	54,249	3,744	17,304	25,498	0.7921	0.7050
+ floor 0.20, exg>0.06 vote	65,307	1,751	27,579	27,233	0.8100	0.7130

Table basis: detector hag, A1B0 mask, w_beam-scoped, returns rule included in every row.

3. Proof of no-op

On segment 085 versus the pre-change HEAD baseline (41bd9eb):

Configuration	Result
All knobs off	`point_masks.npz` and `guardrails.json` identical to baseline
Returns filter only	identical to the pass-1 output

4. Results on 085 (both filters on)

GT-centric vs GT-66, 5 cm join, fresh HEAD baseline:

	baseline	pass 1	pass 2
P	0.7334	0.7530	0.7937
R	0.6824	0.6819	0.6818
F1	0.7070	0.7157	0.7335
Rows dropped	–	16,203	49,935
GT-66 lost	–	459	518
Terrain / low-veg / bush removed	–	229 / 3,374 / 10,247	20,227 / 15,661 / 10,394

Floor increment alone (pass 2 vs pass 1): 33,732 rows dropped for 59 additional GT-66; 19,998 terrain, 12,287 low veg. guardrail_support drops 0. Runtime and peak RSS unchanged (4.28 GB).

5. Train segments

Rows dropped (returns / floor) of total mask rows; guardrail_support drops 0 everywhere.

Segment	Mask rows	Returns dropped	Floor dropped
018	776,827	7,856	26,413
060	1,682,718	5,611	48,652
066	1,989,204	9,021	54,463

Vision judge (Opus, 10 renders of the floor increment, 085×4 + 018/060/066×2): 10/10 correct. Removals form a band on the ground side of the beam, no holes, rail-core pixel counts within ±2% (usually up, because overlapping grass no longer hides the core), post bases intact.

Caveat: 066 spot_01 — a rail end terminal ramping toward the ground loses a few pixels at its foot; worth one targeted check of terminals.

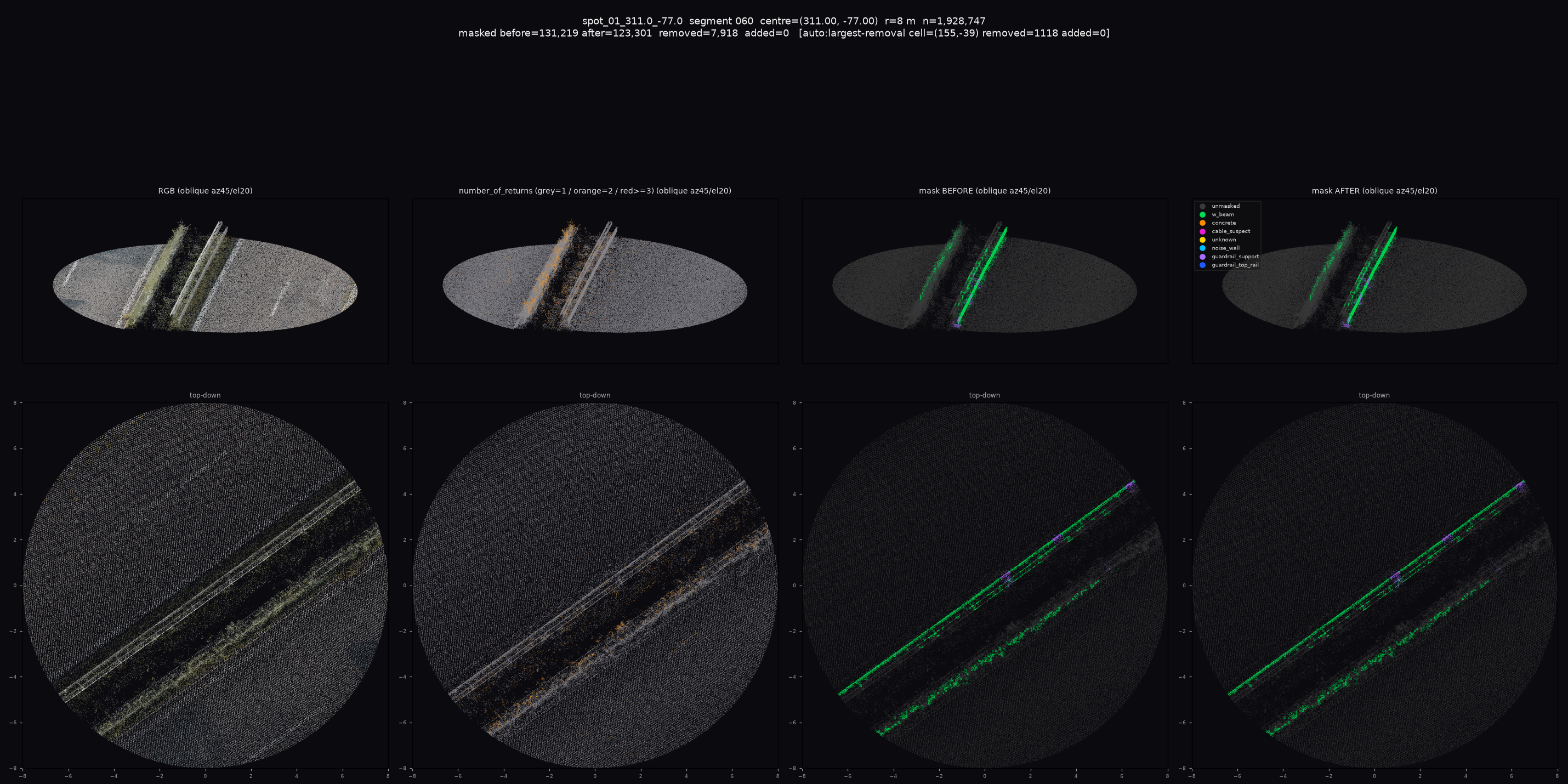

Remaining: above-floor tufts/ferns along the rails; the grass bank in 060 spot_01 that pass 1 mislabelled is only trimmed.

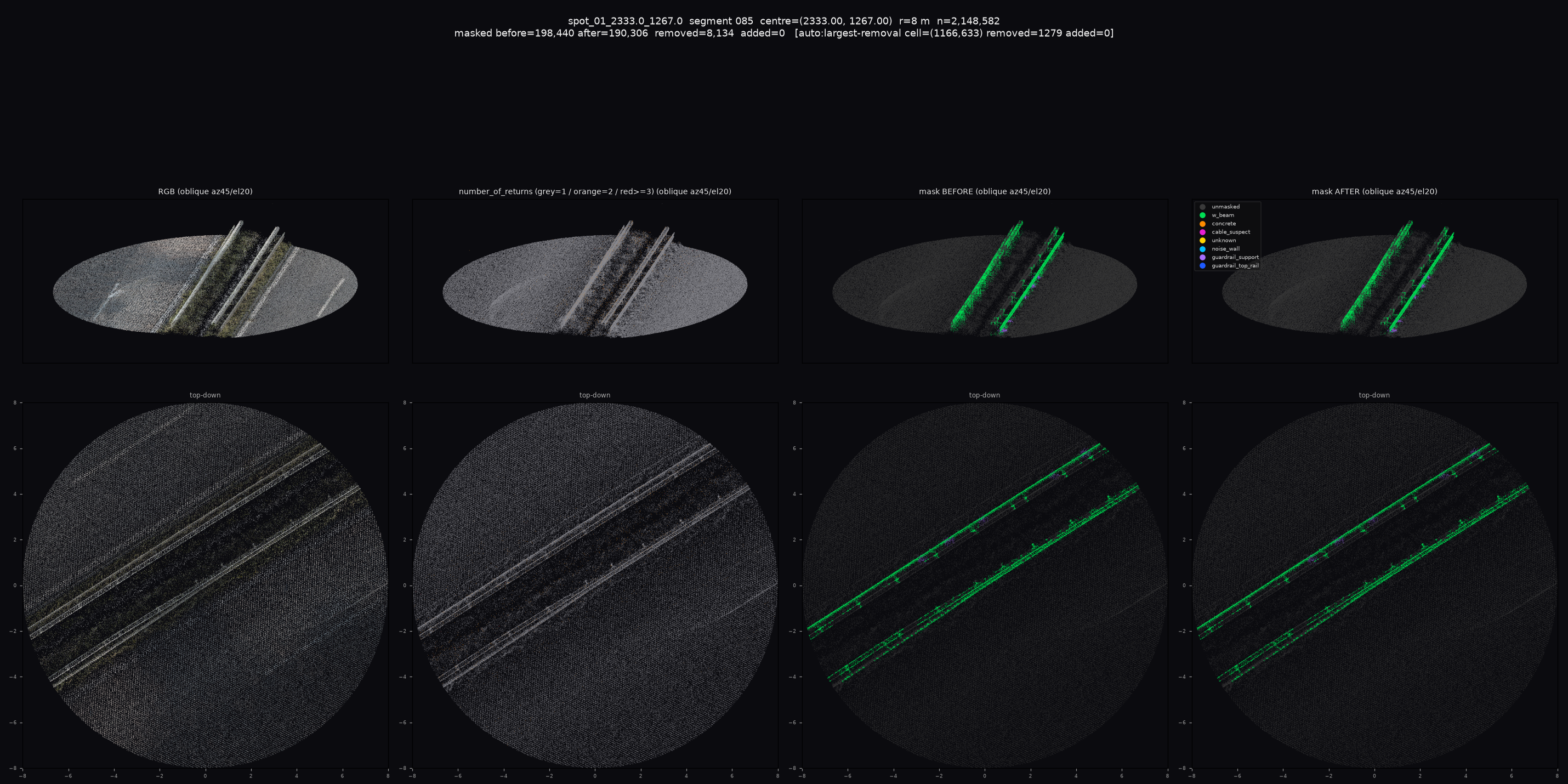

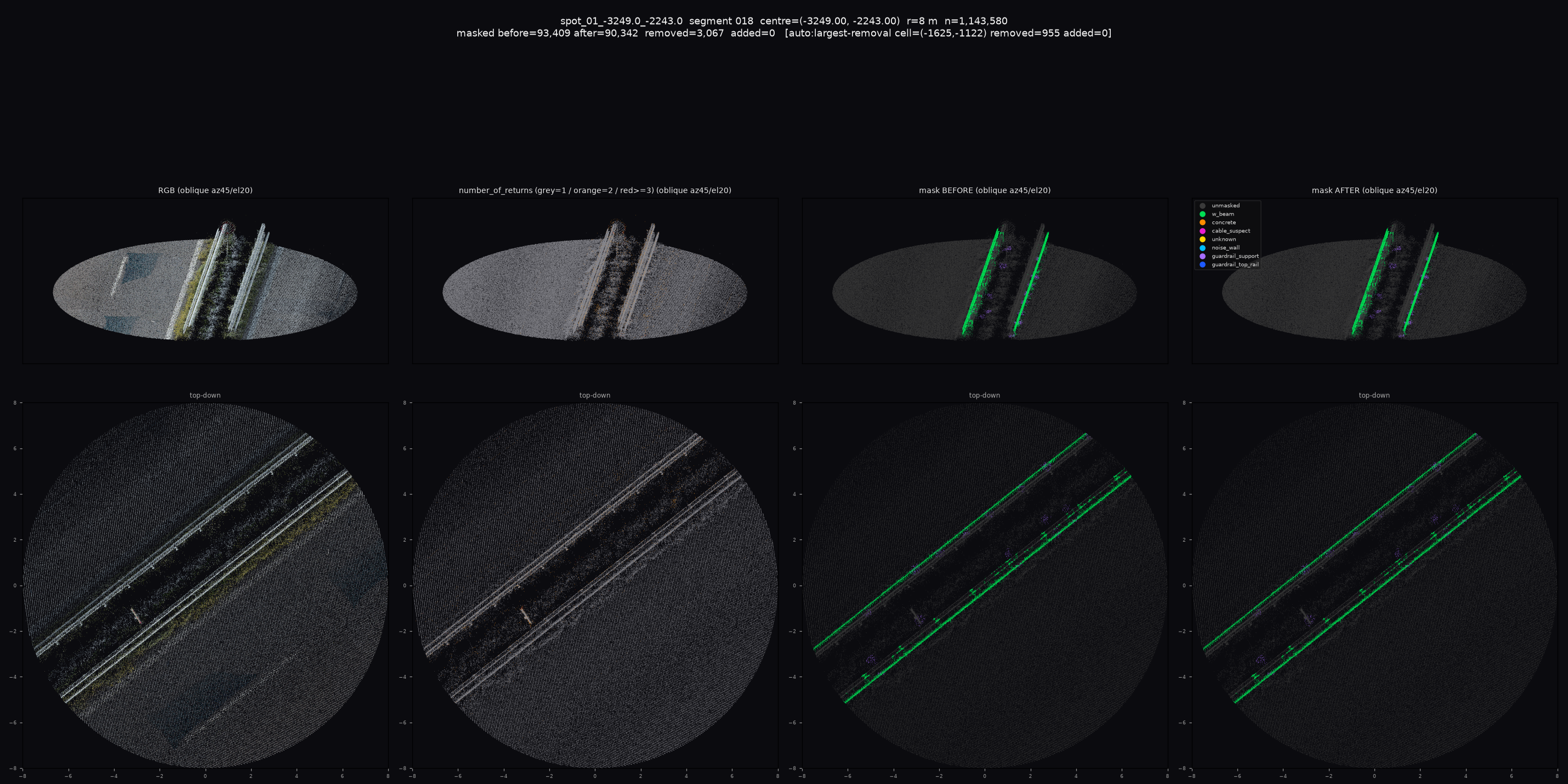

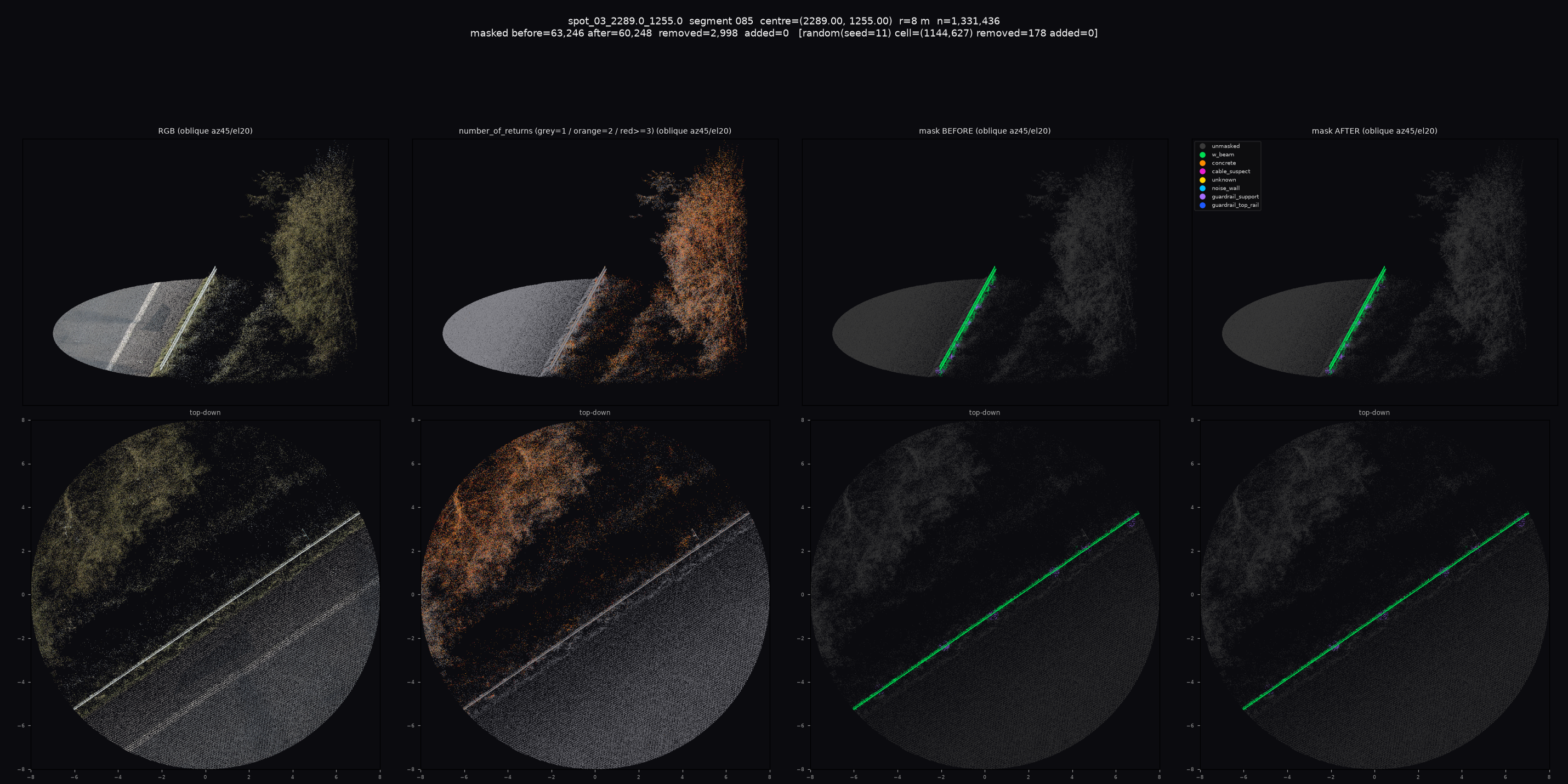

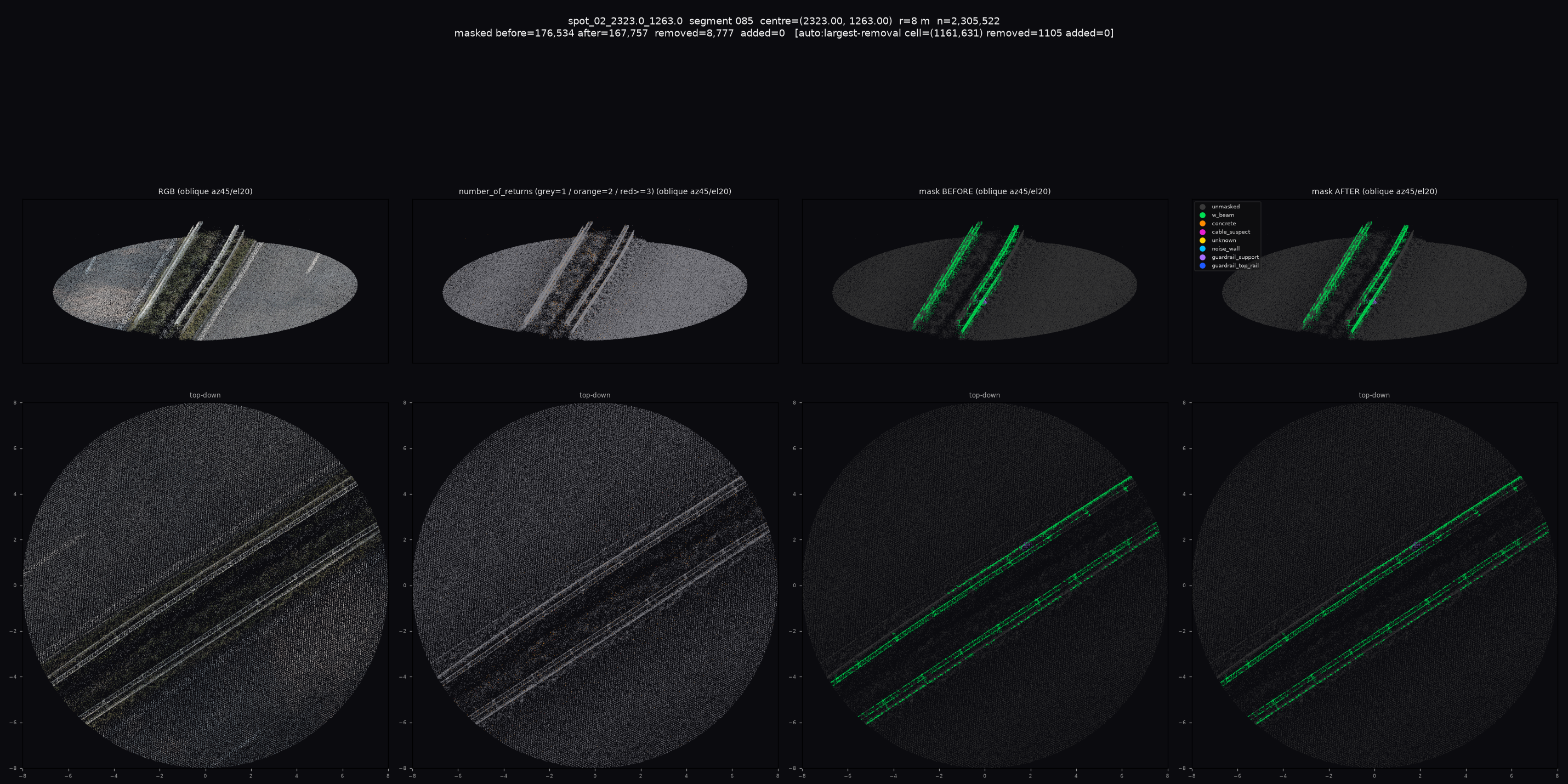

Floor increment renders — 085 (val, GT) ×3, 018/060/066 (train) ×1

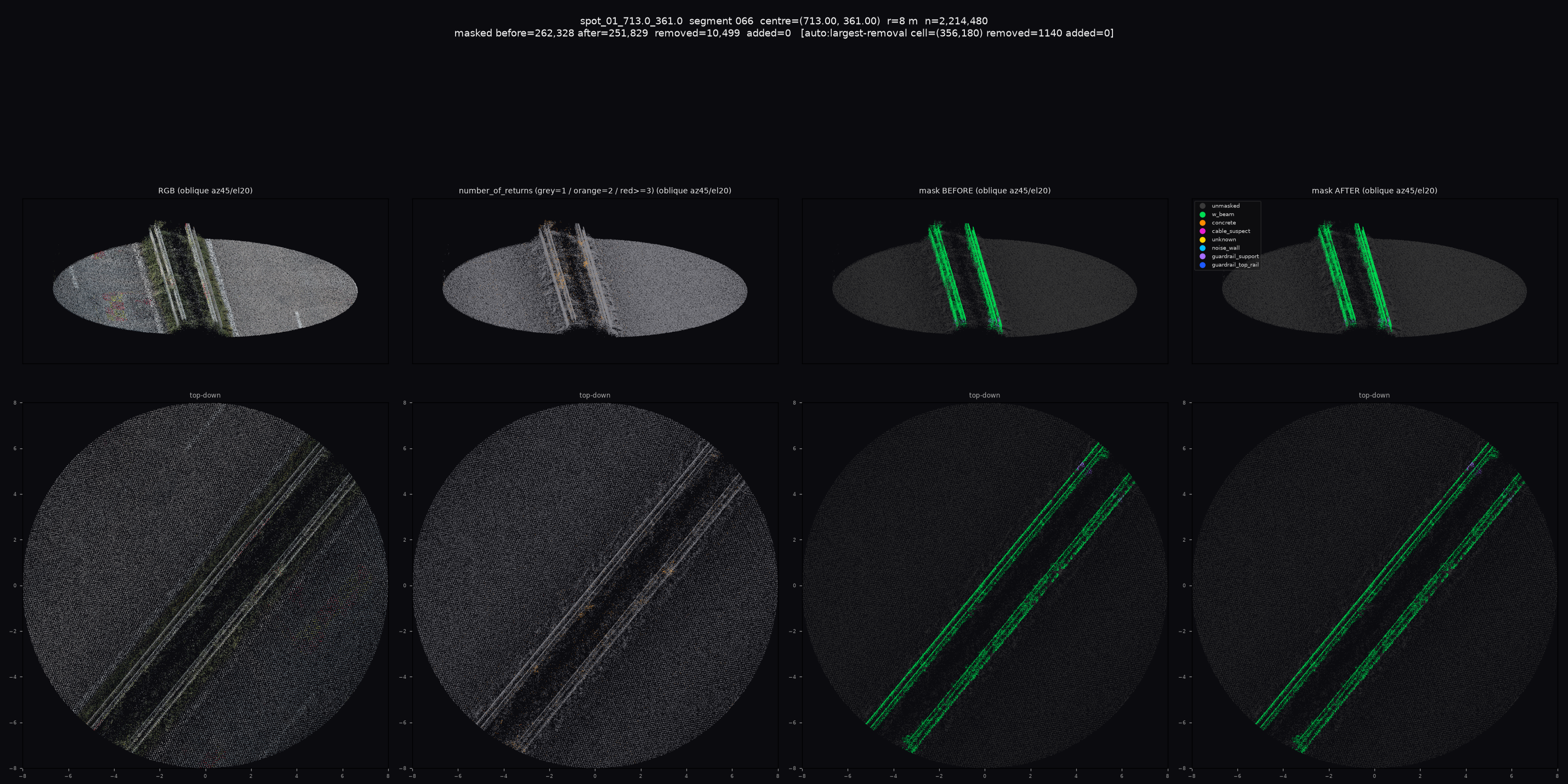

066 . spot_01 . 10,499 removed (terminal caveat)

6. Final gate on the val split

003, 022, 023, 087, 093, 094 — never tuned on. Base config vs recommended = both knobs on. No GT available for this split; vision judge only. Instance counts unchanged, runtime/RSS unchanged.

Segment	Mask rows	Returns dropped	Floor dropped	Total %
003	1,054,091	8,616	2,636	1.1%
022	1,263,854	8,418	44,968	4.2%
023	1,366,816	4,418	49,377	3.9%
087	2,335,432	1,164	68,401	3.0%
093	1,390,515	1,343	77,188	5.6%
094	1,357,474	1,771	57,091	4.3%

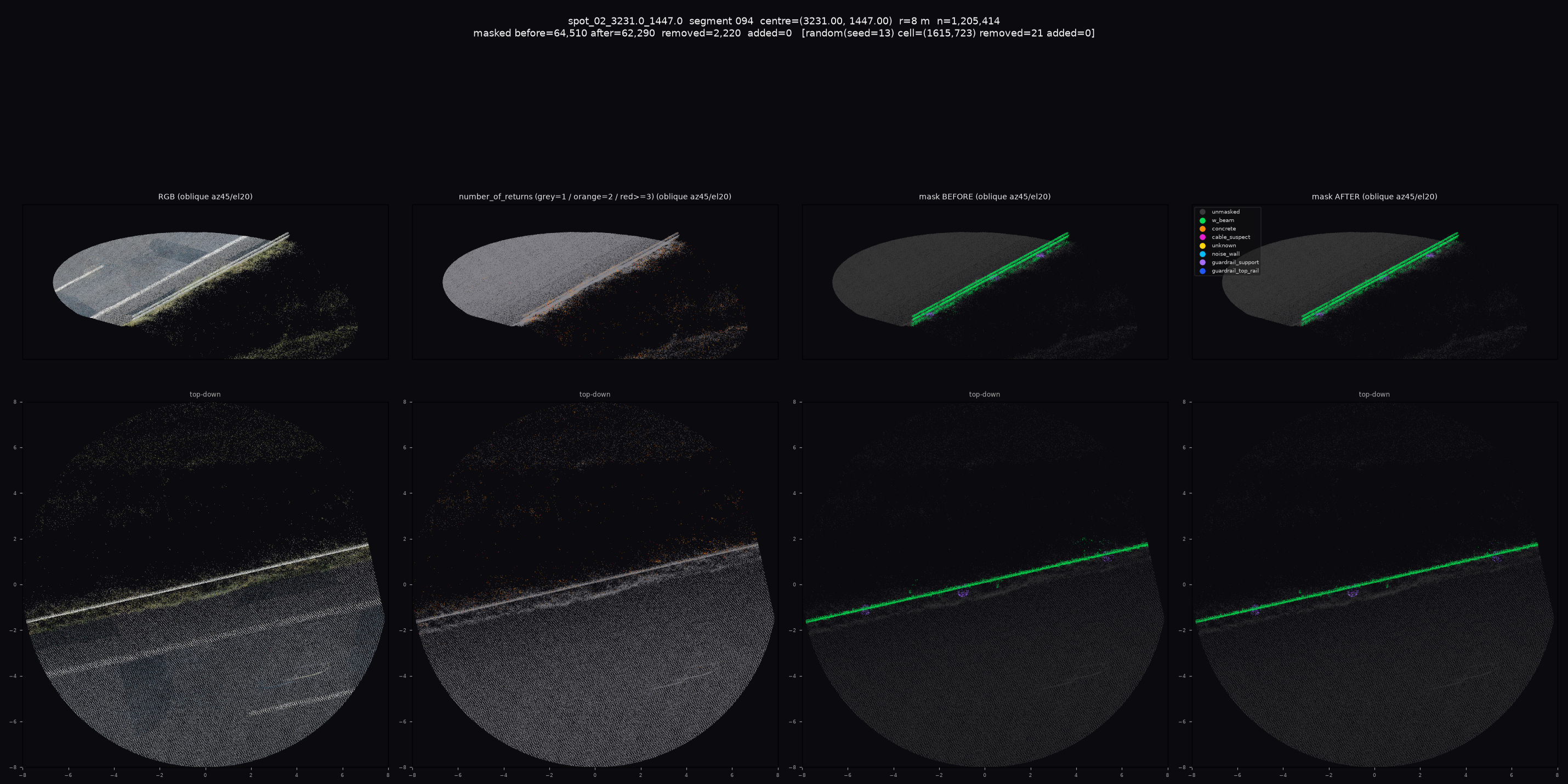

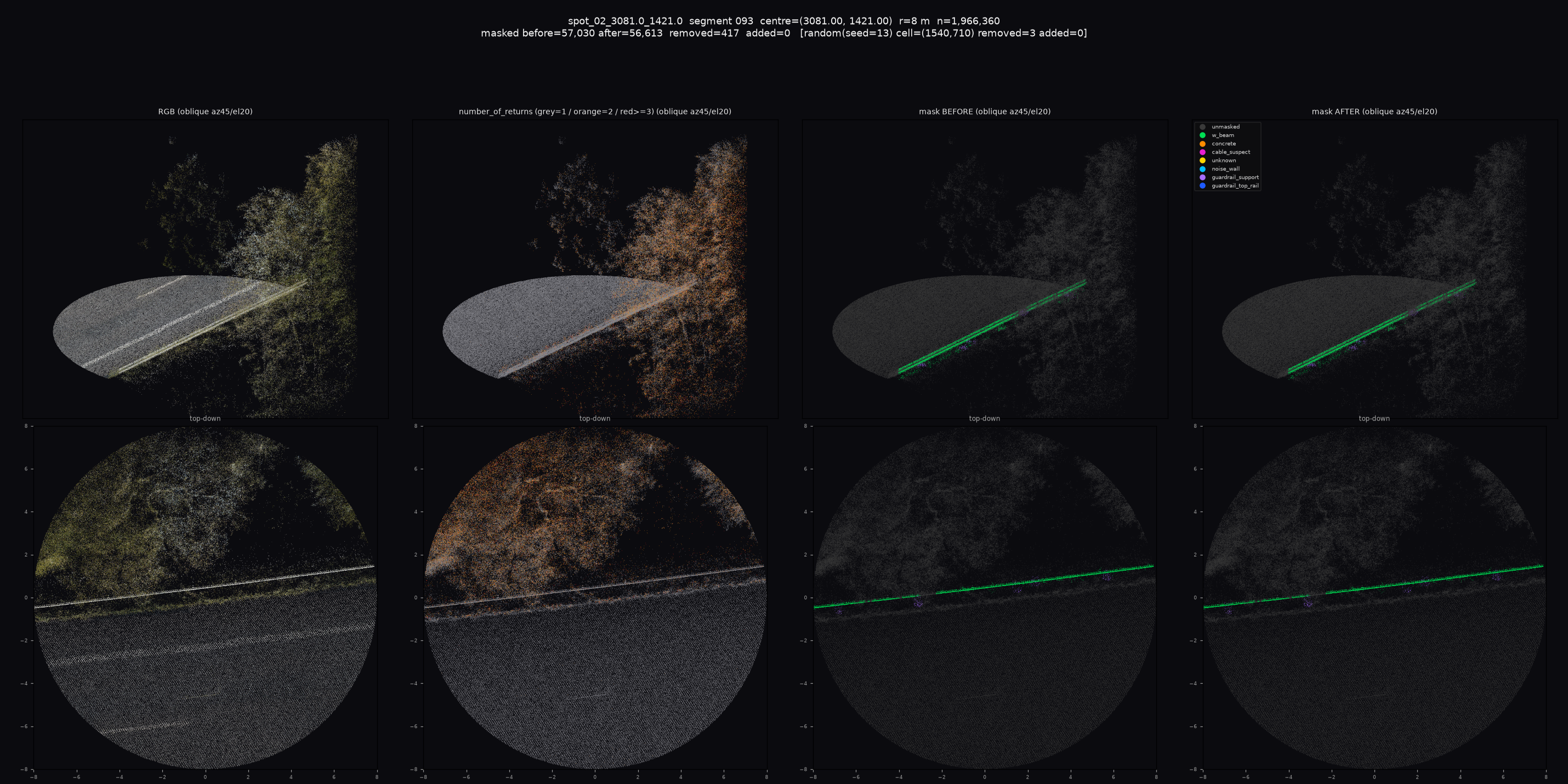

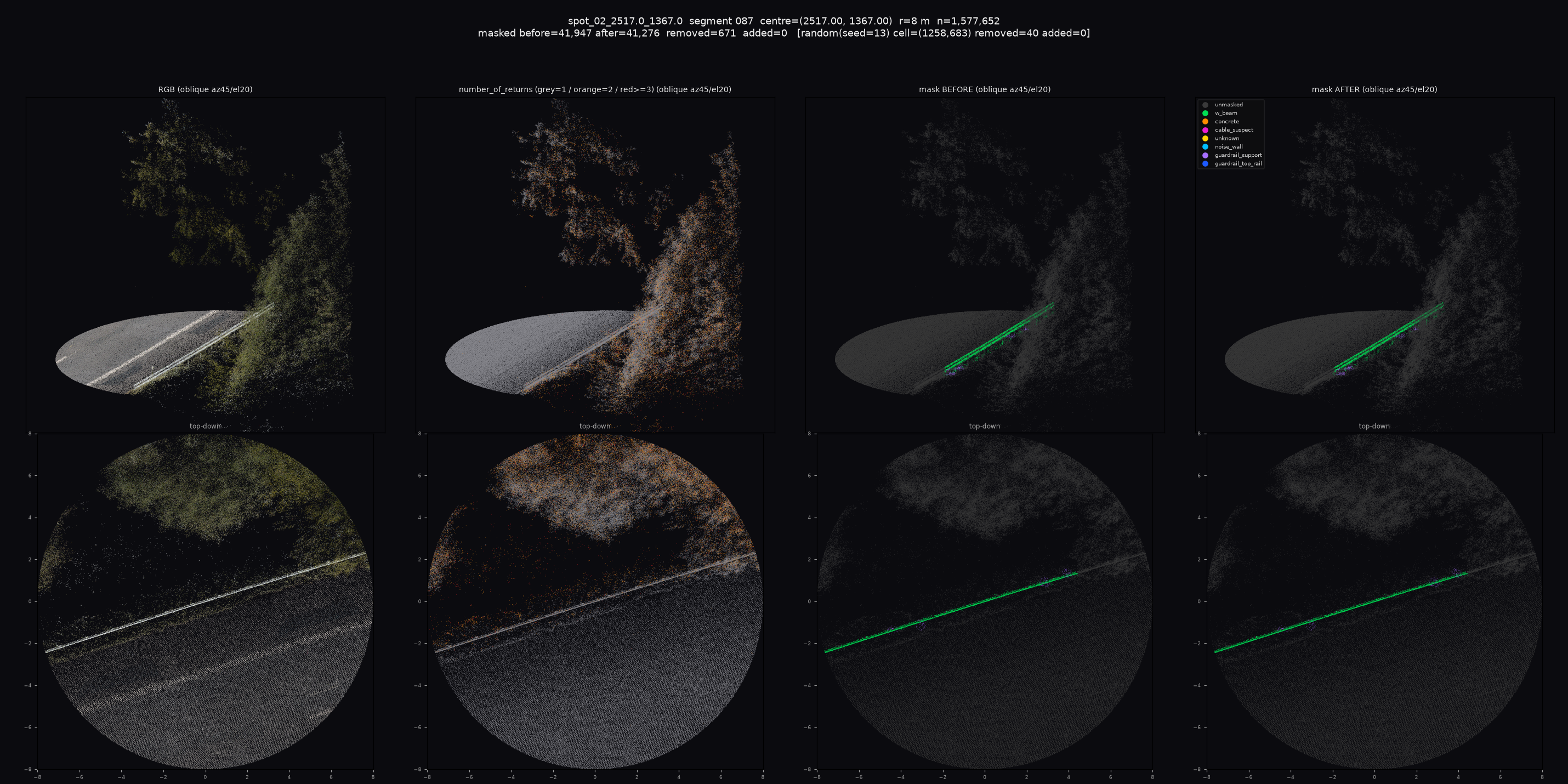

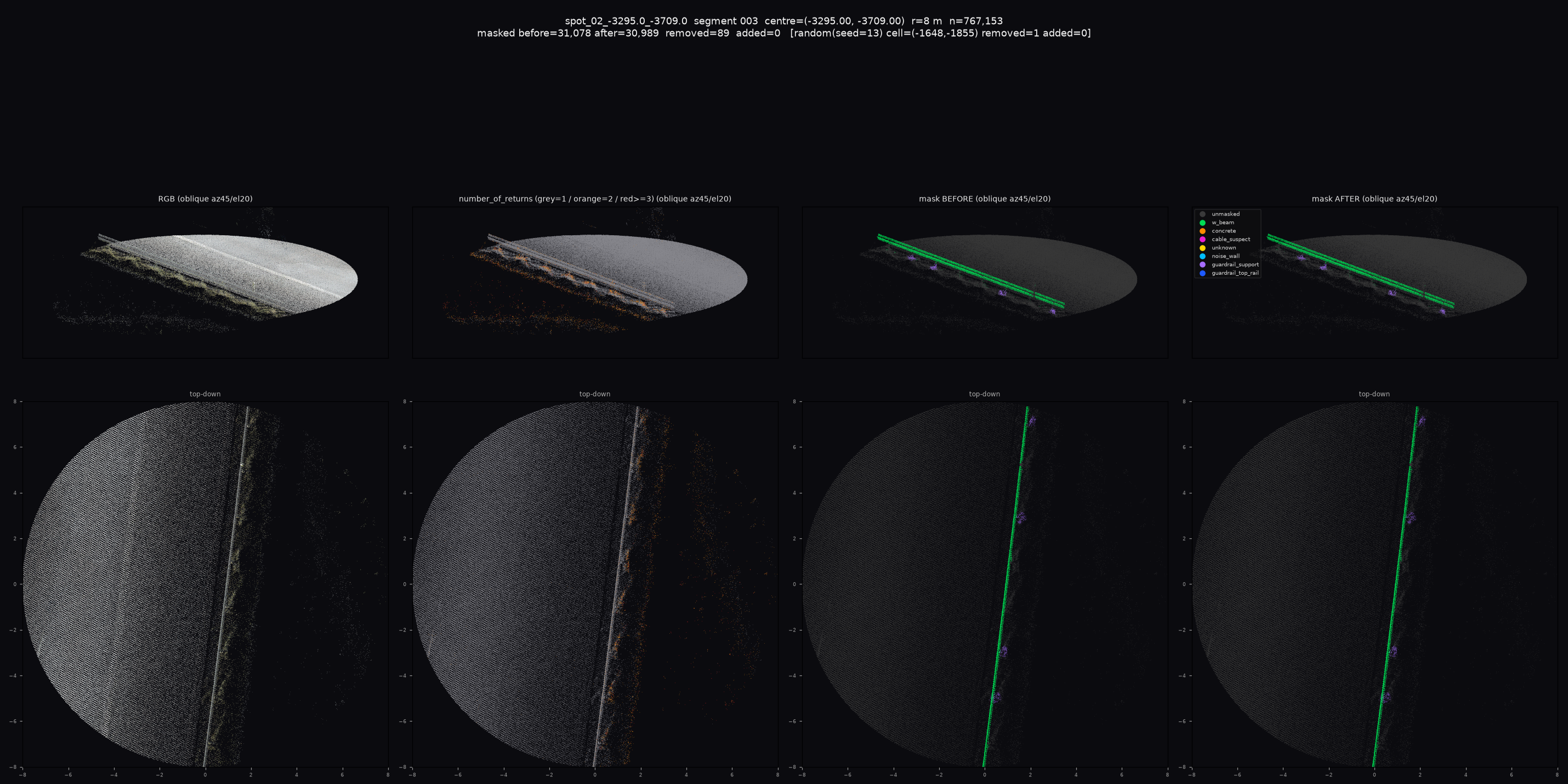

Vision judge (Opus, 12 renders, 2 per segment: largest removal cell + random): 12/12 correct.

PASS WITH CAVEATS

On 087/093/094 the removed set hugs the beam's lower/back edge as a near-continuous line at the rail toe — correct at 0.15 m, but treat 0.15 m as a ceiling; do not raise the floor.
022 under-removes: large bush/hedge masses on an overgrown median rail stay labelled w_beam (the filter helps, does not solve it).
Image-based; sub-pixel loss of individual bottom-flange points cannot be excluded from renders.

Segment 003 (val)

003 . spot_01 . 4,860 removed (largest cell)

Segment 022 (val)

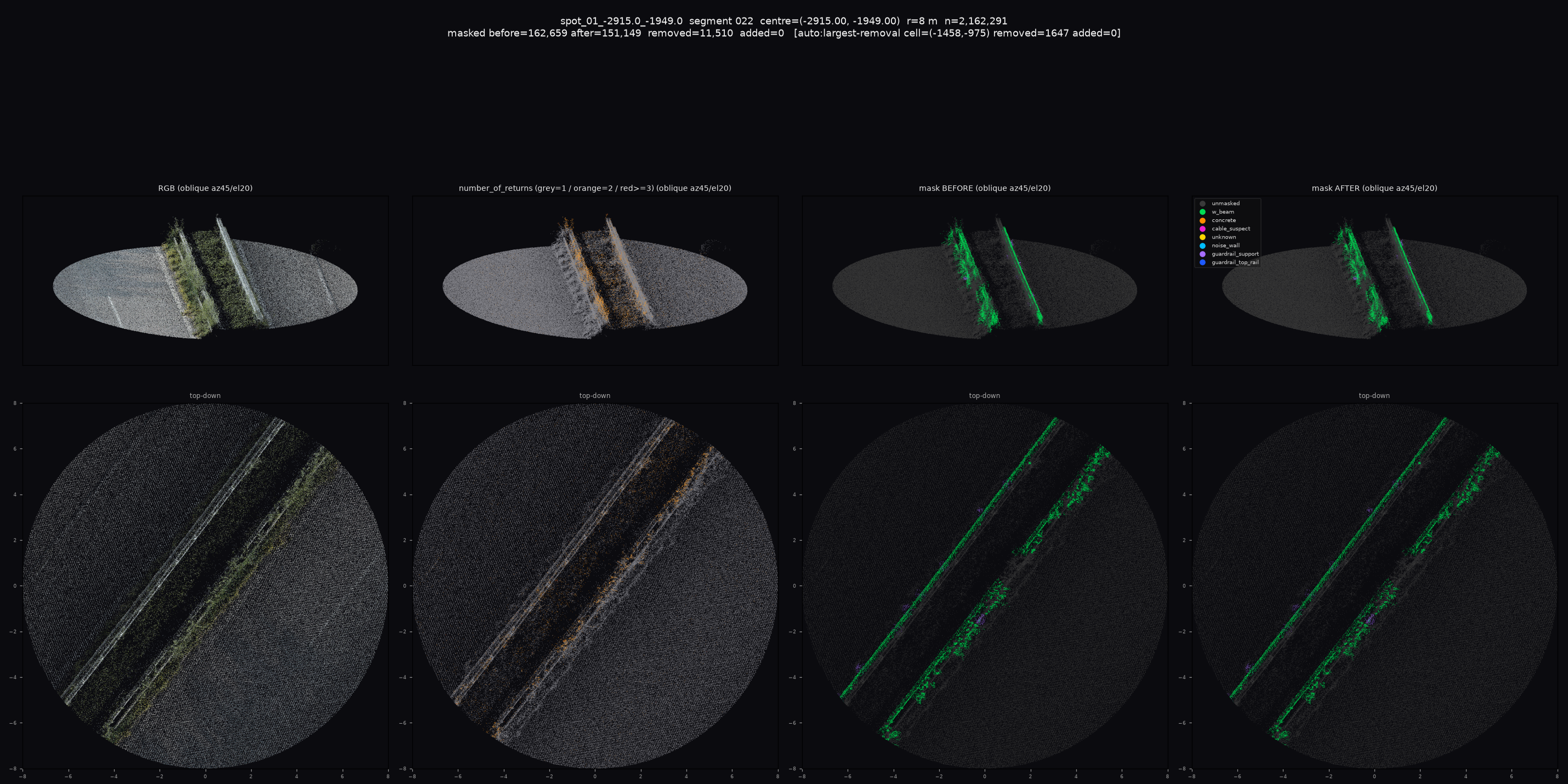

022 . spot_01 . 11,510 removed (largest cell)

Segment 023 (val)

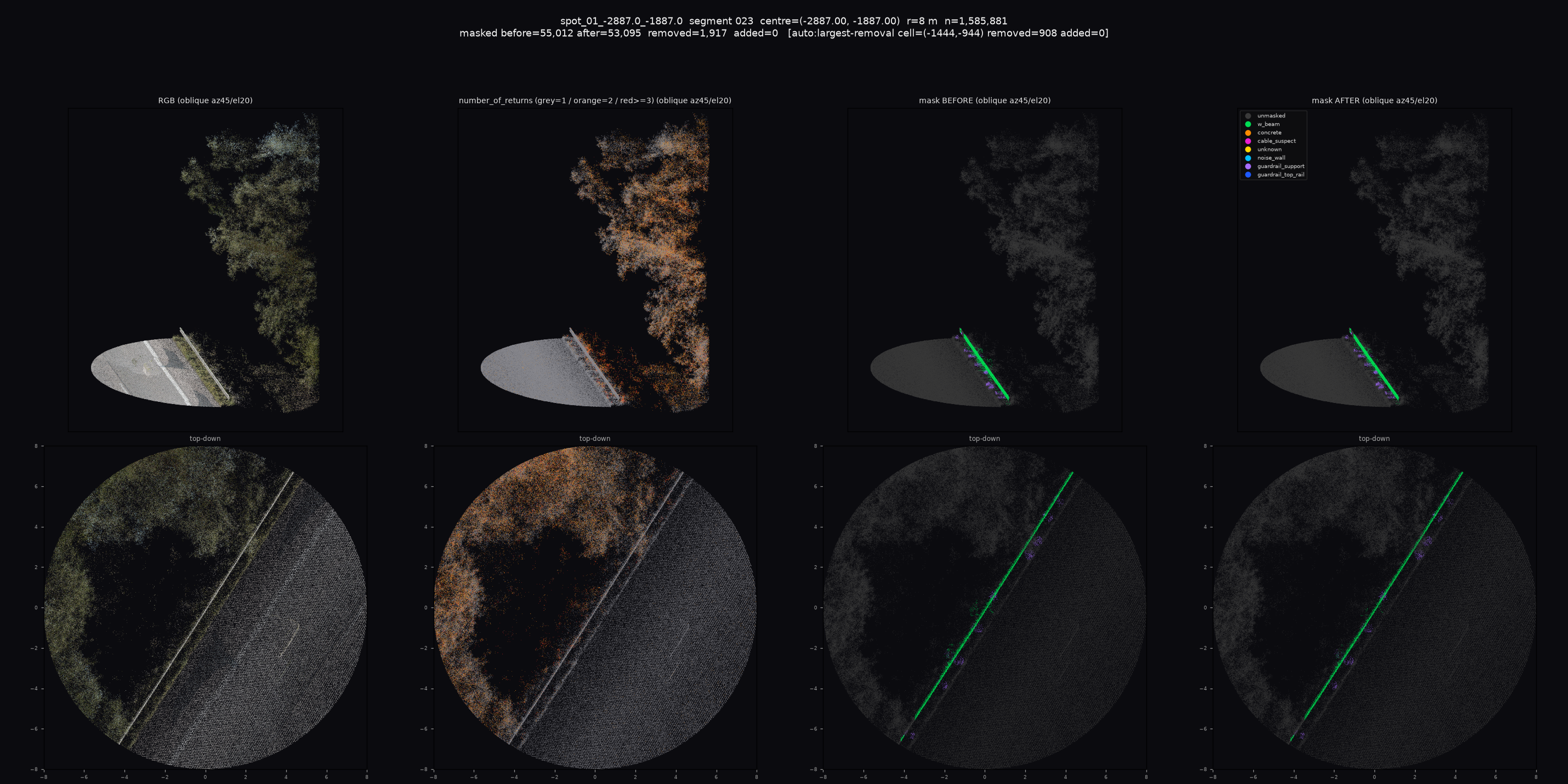

023 . spot_01 . 1,917 removed (largest cell)

Segment 087 (val)

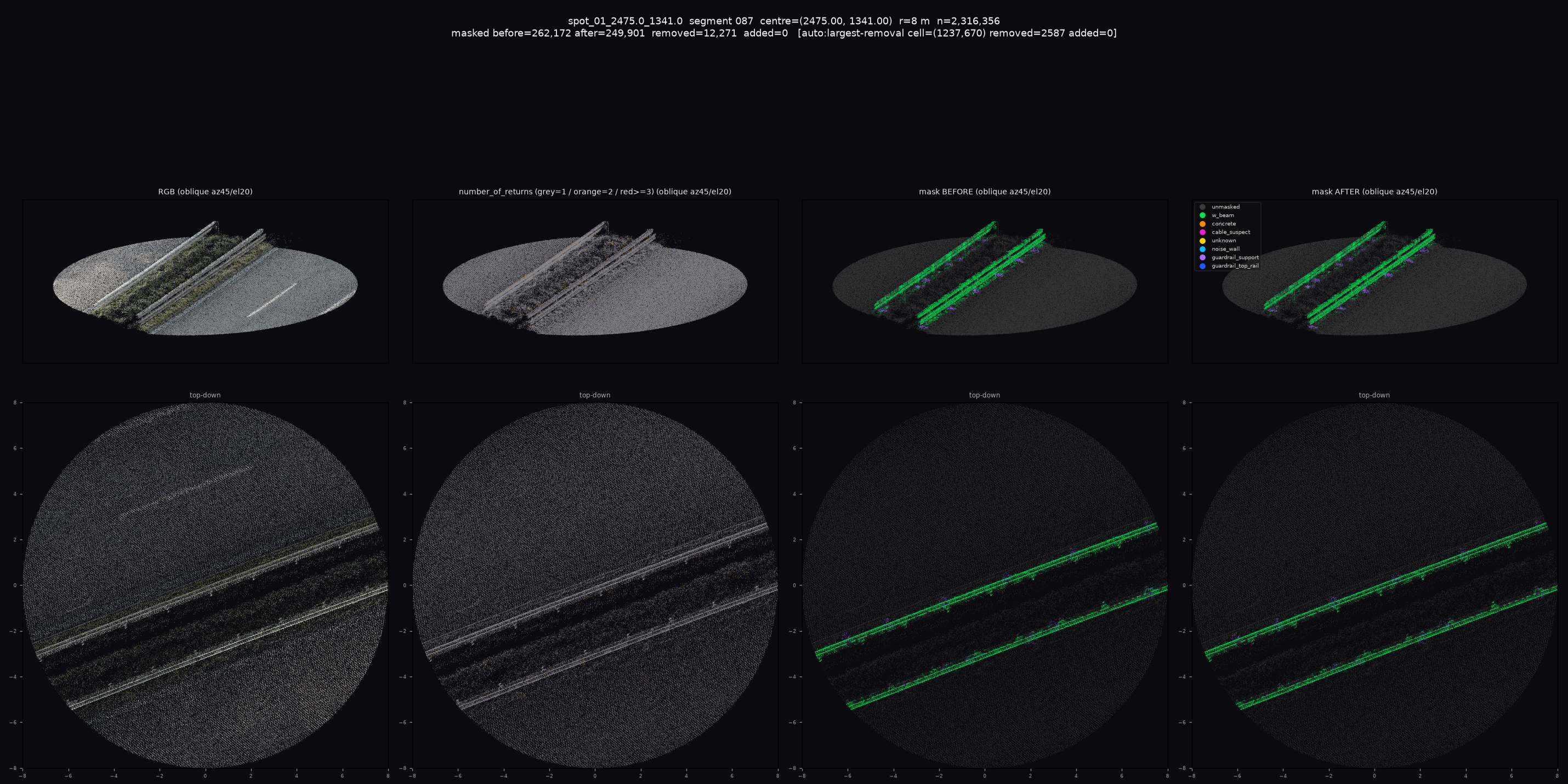

087 . spot_01 . 12,271 removed (largest cell)

Segment 093 (val)

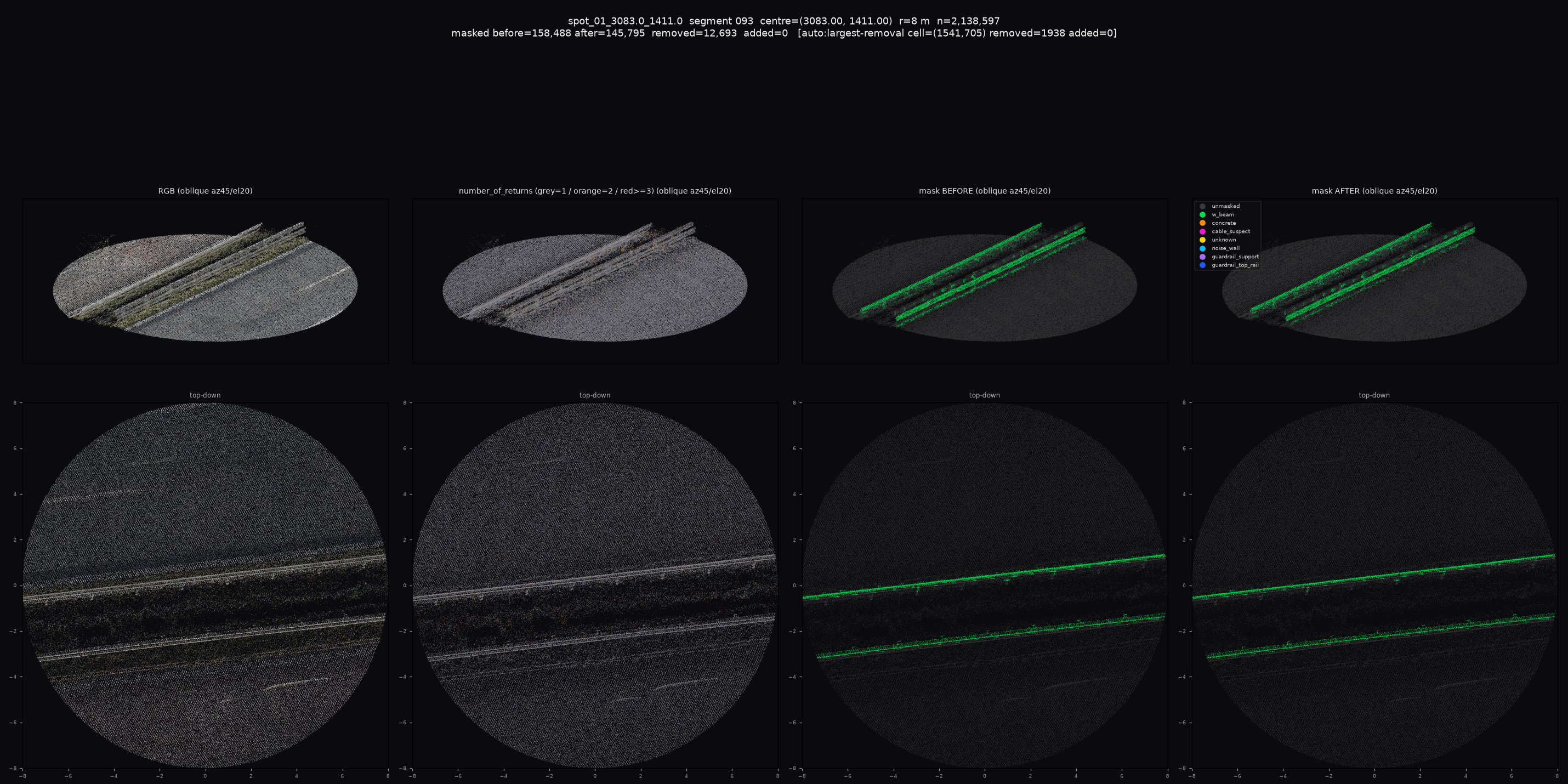

093 . spot_01 . 12,693 removed (largest cell)

Segment 094 (val)

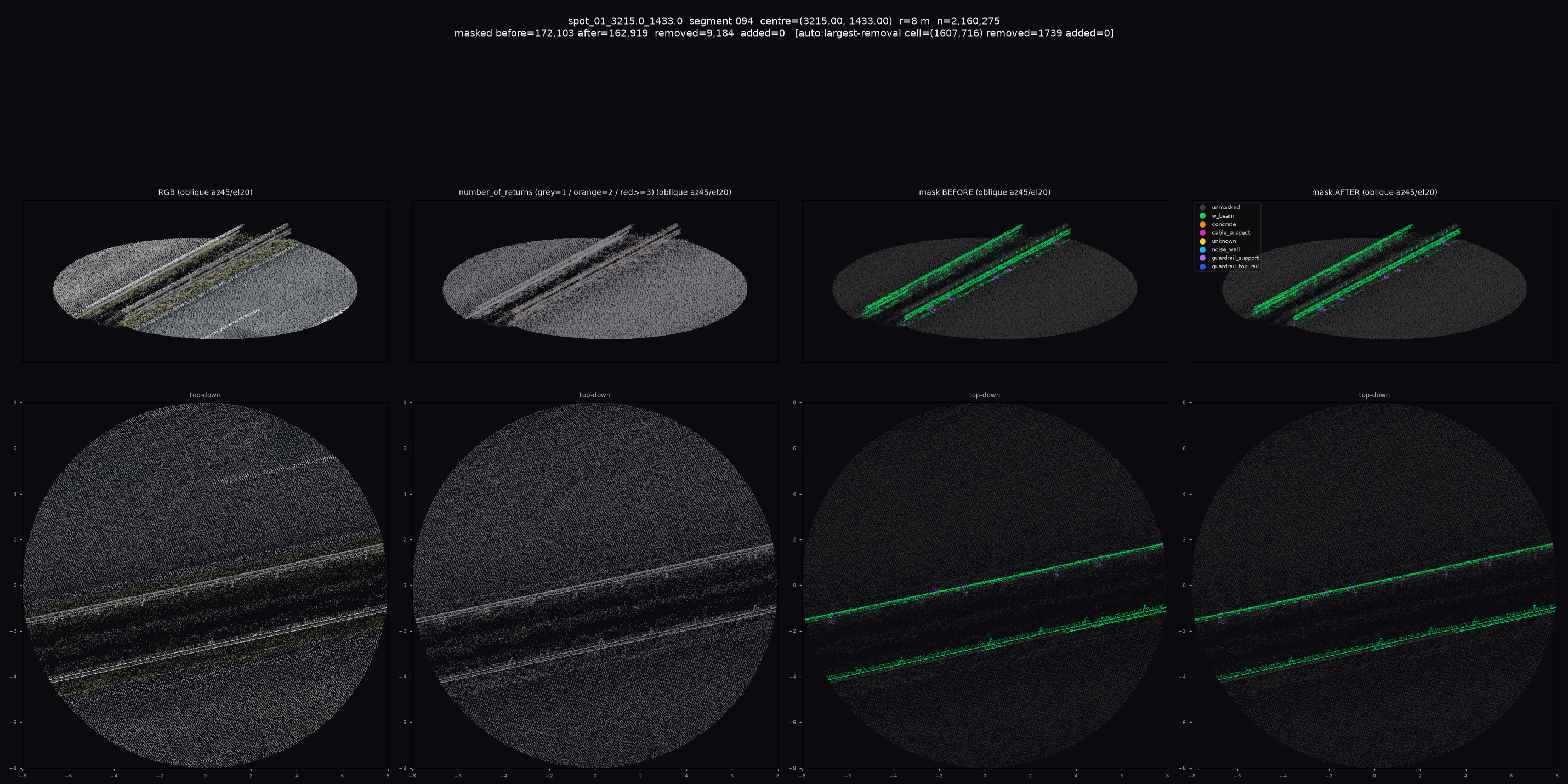

094 . spot_01 . 9,184 removed (largest cell)

7. Verdict

KEEP both filters. Defaults remain OFF in the shipped config; recommended production config = --set returns_filter_enabled=true --set greenery_floor_enabled=true. Flipping the defaults ON is Miro's call (release decision).

8. Not improved / next

Recall — 36,391 GT-66 points on 085 still unclaimed (the handoff's §5c investigation, untouched here).
Above-floor greenery attached to the rail (tufts, ferns, the 022 hedge) — single-return and above 0.15 m, neither cue reaches it; a neighbourhood green rate without the height floor was measured at 138 GT-66 lost for 6,784 veg on the DEM sweep and is the next candidate, but must be re-swept on detector hag first.
guardrail_support purity (terrain/low-veg 53% of that class) is out of scope here.
The detector ground model's high bias where no ground return exists is a root cause worth its own ticket (SMRF-style DEM would make the floor both cheaper and safer).
One targeted check of ramped end terminals against the floor.
